brainLight relaxTower PRO 4D-SPHERE


Your Wellness-Sphere

The brainLight®-Complete-System with the 4D-Shiatsu Massage Chair SPHERE, wrapped in OEKO-Tex 100 certified leatherette - IS your Wellness-Sphere! It allows massages from neck to buttocks, tip of your fingers to the tip of your toes. Individually adjusted, when using the Health Check function or manually chosen, according to your needs at the moment: This feels good right now, in just this intensity. Add to this the Negative-Ions-Function, which can heighten your sense of feeling well. Combined with the light and sound of the brainLight-Systems, SPHERE offers you a perfect experience of well-being.


brainLight-relaxTower PRO 4D-SPHERE – Basic Model

401 Introduction + Session (20 min.)


10 Minute Programs

430 Positive affirmations for the beginning of your day
431 Positive affirmations for the end of your day
432 Piece of music „Free Flow“
433 Piece of music „Chill Fit“
434 Piece of music „Energy“
435 Piece of music „Free Time“
436 Quick meditation „Stocking up on energy“
437 Quick meditation „Being powerful“
438 Piece of music „Shift“
439 Piece of music „Timeless“

15 to 20 Minute Programs
450 Piece of music „Fantasy“
451 Piece of music „Space“
452 Piece of music „Creativity“
453 Piece of music „Wellpower“
454 Piece of music „Deep Inside“
455 Piece of music „Do It“     456 „Refreshed and cheerful within 15 minutes“
457 „Tranquil and balanced within 15 minutes“
458 Piece of music „brainFlight“
459 Narrated relaxation session „Journey through the body“

27 to 30 Minute-All-Inclusive-Wellbeing Sessions
460 Piece of music „Sky“
461 Piece of music „Chill Out“
462 Piece of music „Falling Waters“
463 Piece of music „Freedom“
464 Piece of music „Ocean“
465 Autosuggestion „Enhancing your concentration“
466 Autosuggestion „Creative problem solving“
467 Autosuggestion „Selling successfully“
468 Autosuggestion „Dealing with stress“
469 Autotrance „Fantasy journey“

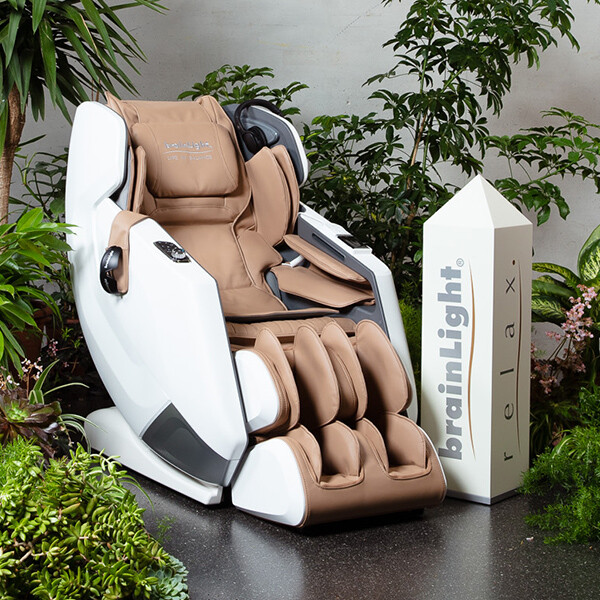

1 brainLight relaxTower PRO with brainLight-4D-Shiatsu-Massage-Chair SPHERE and

  • 1 pair of Visualization-Glasses (LEDs: white) with intensity regulator

  • 1 pair of headphones with volume regulator

  • SD-card with 31 instant programs (Basic-Programs + additional Program-Sets of your choice)

  • relaxTower PRO without payment system

  • External payment systems upon request (integrated coin- and/or token machine)

  • Adapter cable to the brainLight-relaxTower

  • 12 automatic programs in 3 categories: Classic (Relax / Refresh / Stretch / Sleep Aid / Relief / Wake up), Special (Limber up / Wellbeing / Fit), Focus (Neck / Lumbar / Thigh)
  • Bodyscan for detecting the individual back length; massage is automatically adjusted
  • 3D-Mechanism:
    6 levels of intensity
  • Pinpoint positioning of the massage rolls
  • 6 types of massages: Kneading, Tapping, Knocking (Pounding), Clapping, Interval and Shiatsu for back- and buttocks-area with up to 6 speed settings
  • Air pressure massage for the following areas are available in three intensity settings: Shoulders, Arms/ Hands, Legs/ Calves – can be chosen separately or combined
  • Massage for the soles of your feet with 3 speed settings
  • Heating function for your lower back with three different intensity cycles:
    Cycle 1: 1 minute on, 2 minutes off;
    Cycle 2: 2 minutes on, 3 minutes off;
    Cycle 3: 5 minutes on, 1 minute off
  • 3 massage chair positions manually selectable – down to Zero Gravity Position
  • Position of seat angle and footrest can each be adjusted individually
  • Timer function
  • Automatic switch-off
  • Very energy- and space-saving
  • Easy to assemble



  • Heart rate and oxygen saturation in your blood are determined
  • Calculated state of exhaustion (0-100)
  • Allows for a massage calibrated accordingly
  • Control panel with clear LCD display in different languages (German, English, French, Polish, Czech)
  • Easy to reach shortcut buttons on right side panel to choose automatic program, 3D-intensity, angle of chair, heating function, foot-sole massage, and Off function of chair
  • USB-A-port
  • Storage compartment for smartphone in left side panel
  • Connecting cord to the brainLight-Synchro PRO or relaxTower PRO
  • Accessory bag for storing the brainLight-Visuali-
    zation-Glasses on right side panel
  • Foldable backrest pad in the back-/seating area
    can be folded into a second head cushion or can be removed, if a stronger massage intensity is desired
  • Foam pads for the foot area – can be inserted, if a
    softer foot-sole massage is desired
  • Cover material made out of OEKO-Tex 100 certified
    OEKO-Tex 100 zertifiziert
  • Vertical range of the massage rolls: 125 cm
    (approx. 4.1 ft)
  • Position angles of the chair: 130° – 155°
  • Operating voltage: AC 220 – 240 V; 50 – 60 Hz
  • Wattage: 170 W
  • Motor voltage: 24 V
  • Weight: 75 kg +/- 3 kg
  • Dimensions: approx. L 140 cm x B 74 cm x H 112 cm
    approx. L 4.6 ft x W 2.4 ft x H 3.7 ft
    Dimensions when chair is fully reclined and the footrest positioned horizontally:

    approx. L 156 cm x B 74 cm x H 97 cm
approx. L 5.12 ft x W 2.4 ft x H 3.2 ft
  • Display showing current program and remaining
    session time

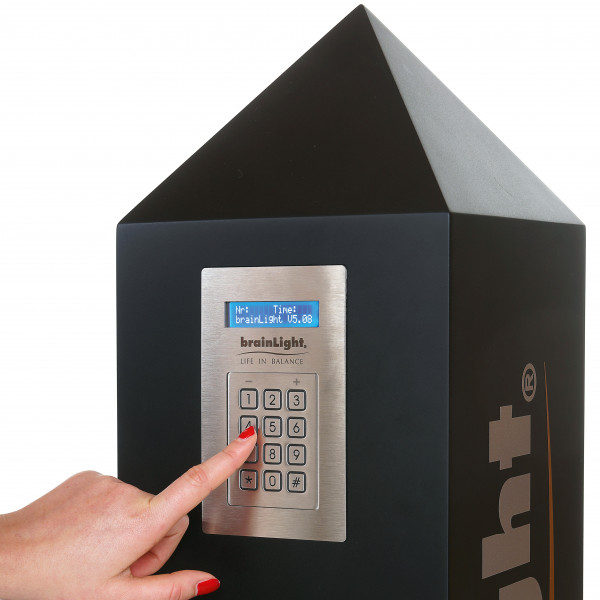

  • Integrated key pad
  • Statistical survey:    number of individual and total sessions
  • Lockable compartment for coin removal and exchange of program card
  • Color relaxTower: TITAN or black, other colors upon request (with surcharge)
  • External payment systems upon request.


  • Dimensions:
    L 23 cm x W 23 cm x H 90 cm
    (approx. 9 x 9 x 35.4 inches)
  • Weight without coin-operated machine: 13,4 kg
  • Weight with coin-operated machine: 14 kg.

brainLight relaxTower PRO with 4D-Shiatsu-Massage Chair SPHERE - Basic Model

Net price: €6.450 (without coin-operated machine)

Net price: €6.800 (with coin-operated machine)

NOTE: Due to different delivery costs per order and destination, all orders have to be placed by Email and will be processed individually. If you have any questions re. the product or your best choice, please contact your sales rep or send a preliminary email.

GUARANTEE: 24 months for private use, 6 months for commercial use.
WARRANTY: 24 months for private use, 12 months for commercial use.
All products subject to technical changes.

Your brainLight Sales Rep

Product Consultation


Product Consultation

We will gladly take care of your request and answer all your questions about the audio-visual relaxation systems by brainLight.

Additional Program-Sets in English


User Manual

Program Brochure

coming soon

Massage form neck to buttocks


Heating function


Zero Gravity Position


Massage with rollers


Shortcut buttons on top of side panel


Very space-saving


LCD-Display showing current program and remaining session time


Lockable compartment for coin removal and exchange of program card


Coin-operated machine for various currencies or tokens
